TB25
TB25

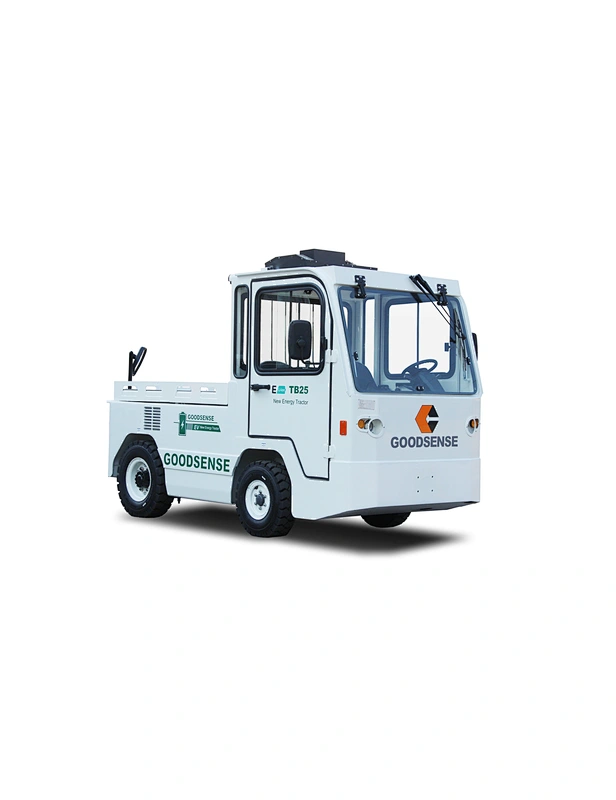

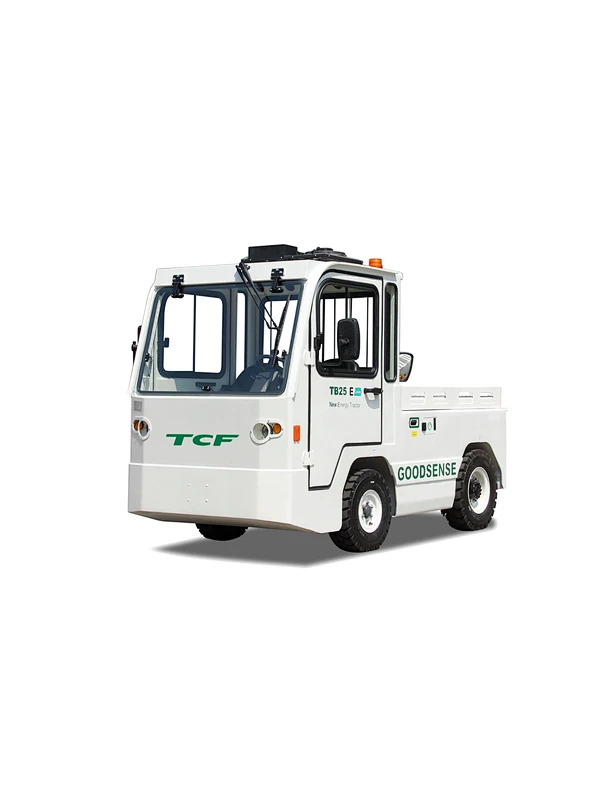

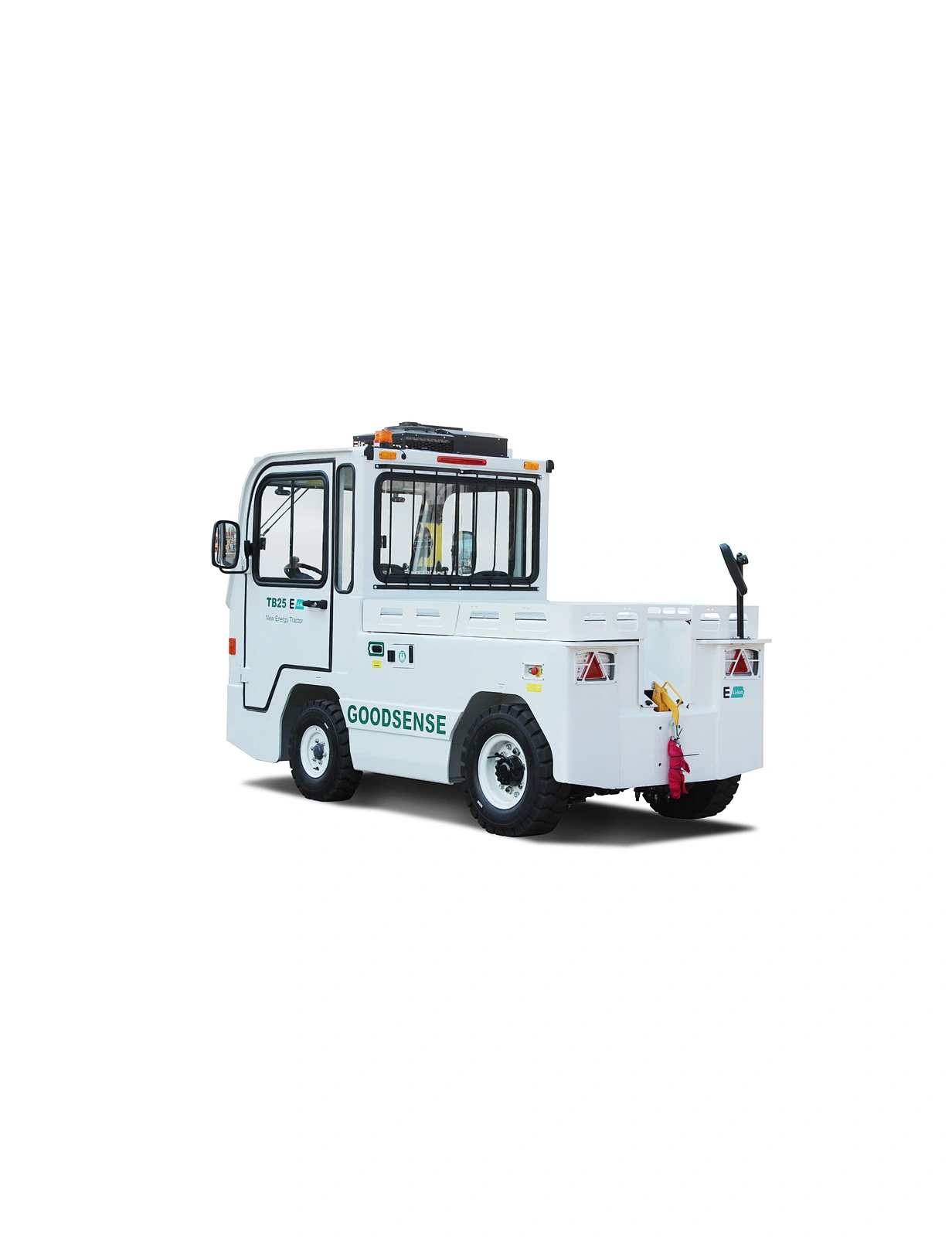

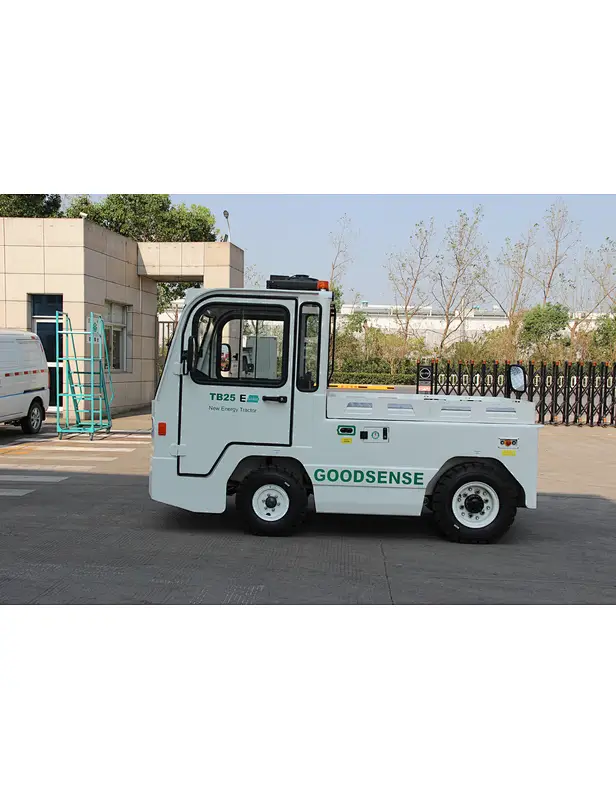

TB25. 2.5Ton electric baggage tractor technical specification.
Power Type: Battery
Rated Capacity: 25000kg
Service weight: 4500kg
Dimension Parameter
Overall Length: 3320mm
Overall Width: 1450mm
Height: 2000mm
Wheelbase: 1620mm
Front Overhang: 1025mm
Wheel Tread(F/R): 1230/1210mm
Front Tire: 6.50-10-10PR
Rear Tire: 7.00-12-12PR
Towing Coupler Height(On/Under): 440/350mm
Ground Clearance: 145/130mm
Turning Radius: 3040mm
Power Type: Battery
Rated Capacity: 25000kg
Service weight: 4500kg
Dimension Parameter
Overall Length: 3320mm
Overall Width: 1450mm
Height: 2000mm
Wheelbase: 1620mm
Front Overhang: 1025mm
Wheel Tread(F/R): 1230/1210mm
Front Tire: 6.50-10-10PR
Rear Tire: 7.00-12-12PR
Towing Coupler Height(On/Under): 440/350mm
Ground Clearance: 145/130mm
Turning Radius: 3040mm
Quantity
TB25. 2.5Ton electric baggage tractor
Left side driving position,good vision,less vision blind area.
Easy and efficient traction device can be operated inside the cab.
Ergonomics operation interface,simple display,easy,safe and convenient operation.
CAN,LEDMeter, Intergrated display,EMC and Water-dust prevention.
Micro-switch for micro adjustment with high efficiency.
Left side driving position,good vision,less vision blind area.
Easy and efficient traction device can be operated inside the cab.
Ergonomics operation interface,simple display,easy,safe and convenient operation.
CAN,LEDMeter, Intergrated display,EMC and Water-dust prevention.
Micro-switch for micro adjustment with high efficiency.
